2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case

Product Categories
Changzhou Trustec Company Limited
Contact Now

2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case

  • 1
  • 2
  • 3

Brand Name : trusTec

Model Number : ES2D

Certification : ROHS

Place of Origin : China

MOQ : 3K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 3K PCS per tape & reel, 48K PCS per carton.

Max. forward current : 2A

Max. reverse voltage : 200V

Package : SMB DO-214AA

Max. forward voltage : 1V

Max. reverse current : 5uA

Trr : 35ns

Operating temperature : -55°C ~ 150°C

Material : Silicon

Contact Now

SMD Super Fast Recovery Rectifier Diode ES2D 2 Amperes 200 Volts Trr 35ns SMB Case
ES2A THRU ES2J
SURFACE MOUNT SUPER FAST RECTIFIERS
Reverse Voltage - 50 to 600 Volts Forward Current - 2.0 Ampere

Product Dimension

2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case

Technical Parameters

Type Current Package
E1A THRU E1J 1 SOD-123FL
ER1A THRU ER1J 1 SMA
ES1A THRU ES1J 1 SMA
ES1AF THRU ES1JF 1 SMAF
ER2A THRU ER2J 2 SMB
ES2A THRU ES2J 2 SMB
ES2AA THRU ES2JA 2 SMA
ES2AAF THRU ES2JAF 2 SMAF
ER3A THRU ER3J 3 SMC
ES3A THRU ES3J 3 SMC
ES3AA THRU ES3JA 3 SMA
ES3AAF THRU ES3JAF 3 SMAF
ES3AB THRU ES3JB 3 SMB
ES5A THRU ES5J 5 SMC
ES5AB THRU ES5JB 5 SMB

Product Features

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Super fast switching for high efficiency
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds at terminals
Mechanical Data
Case: JEDEC DO-214AA molded plastic body
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.005 ounce, 0.138 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

SYMBOLS ES2A ES2B ES2C ES2D ES2E ES2G ES2J UNITS
Maximum repetitive peak reverse voltage
VRRM
 50 100 150 200 300 400 600
VOLTS
Maximum RMS voltage
VRMS
 35 70 105 140 210 280 420
VOLTS
Maximum DC blocking voltage
VDC
 50 100 150 200 300 400 600
VOLTS
Maximum average forward rectified current at TL=55 ℃
I(AV)
 2
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 50
Amps
Maximum instantaneous forward voltage at 2.0A
 VF 0.95 1.25 1.7
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃
IR

5.0

50.0

 µA
Maximum reverse recovery time (NOTE 1)
trr
 35 ns
Typical junction capacitance (NOTE 2)
CJ
 60 pF
Typical thermal resistance (NOTE 3)
RθJA
 40 ℃/W
Operating junction and storage temperature range
TJ,TSTG
-55 to +150
 ℃

Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

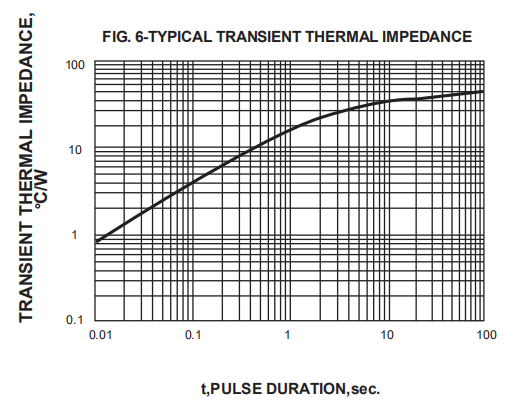

CHARACTERISTIC CURVES
2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case
2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case
2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case
2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case
2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case
2A 200v Surface Mount Super Fast Recovery Rectifiers Es2d Smd Diode Sma Smc SMB Case
